Forklifts Built for Heavy Work and Long Service Life
Internal combustion, lithium-electric and rough terrain forklifts engineered for demanding conditions.
How to read our model codes: CPC = Diesel, manual (clutch) transmissionCPCD = Diesel, hydraulic (automatic) transmissionCPD = Lithium-electric forklift The number that follows indicates rated capacity in hundreds of kg — e.g. CPC30 = 3.0 ton diesel manual forklift; CPCD30 = 3.0 ton diesel automatic; CPD30 = 3.0 ton electric. Mast height options: Every forklift can be ordered with duplex or triplex mast from 3,000 mm up to 8,000 mm lift height. Standard is 3,000 mm; ask for free-lift, container or full-free-lift mast as your warehouse requires.
Forklift Range by Capacity
Three weight classes to match your customer duty cycle. Numbers on the model name (e.g. CPC30) indicate rated capacity in hundreds of kg — 30 = 3.0 ton.
See Our Forklifts Work
Diesel forklift production line and quality testing
OEM & ODM — Build Your Brand
We don't just ship machines. We build them to your brand, your specs, your market.
Color & Livery
Paint in your brand colors. Standard red / orange / yellow, custom colors for 5+ unit orders.
Logo & Branding
Your logo on mast, counterweight, seat cover and shipping carton. Full private-label packaging.
Engine Choice

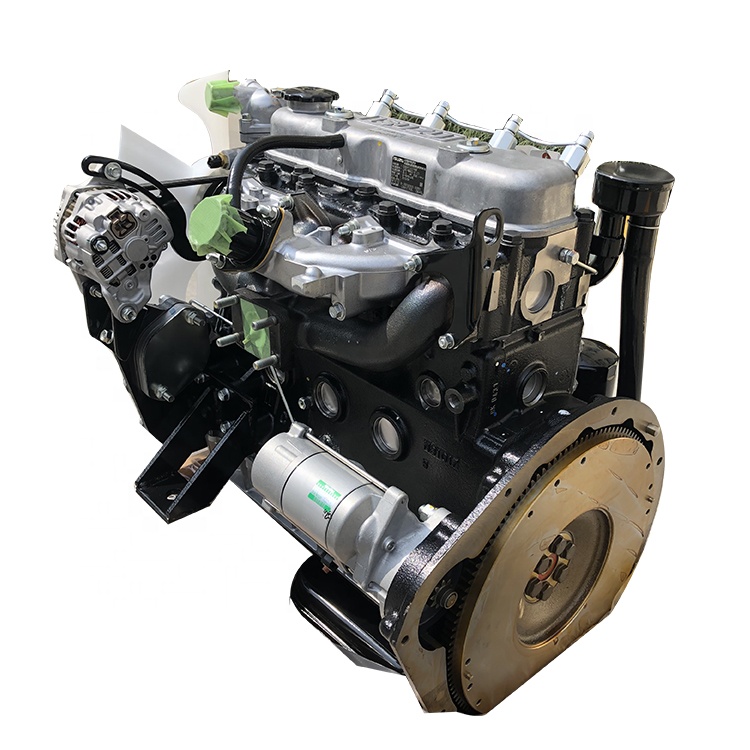

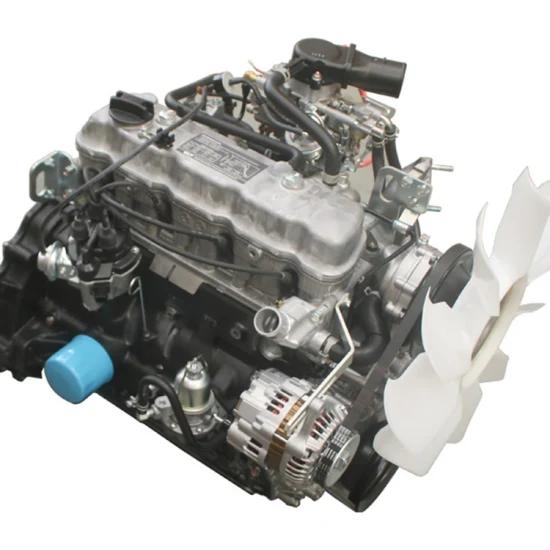

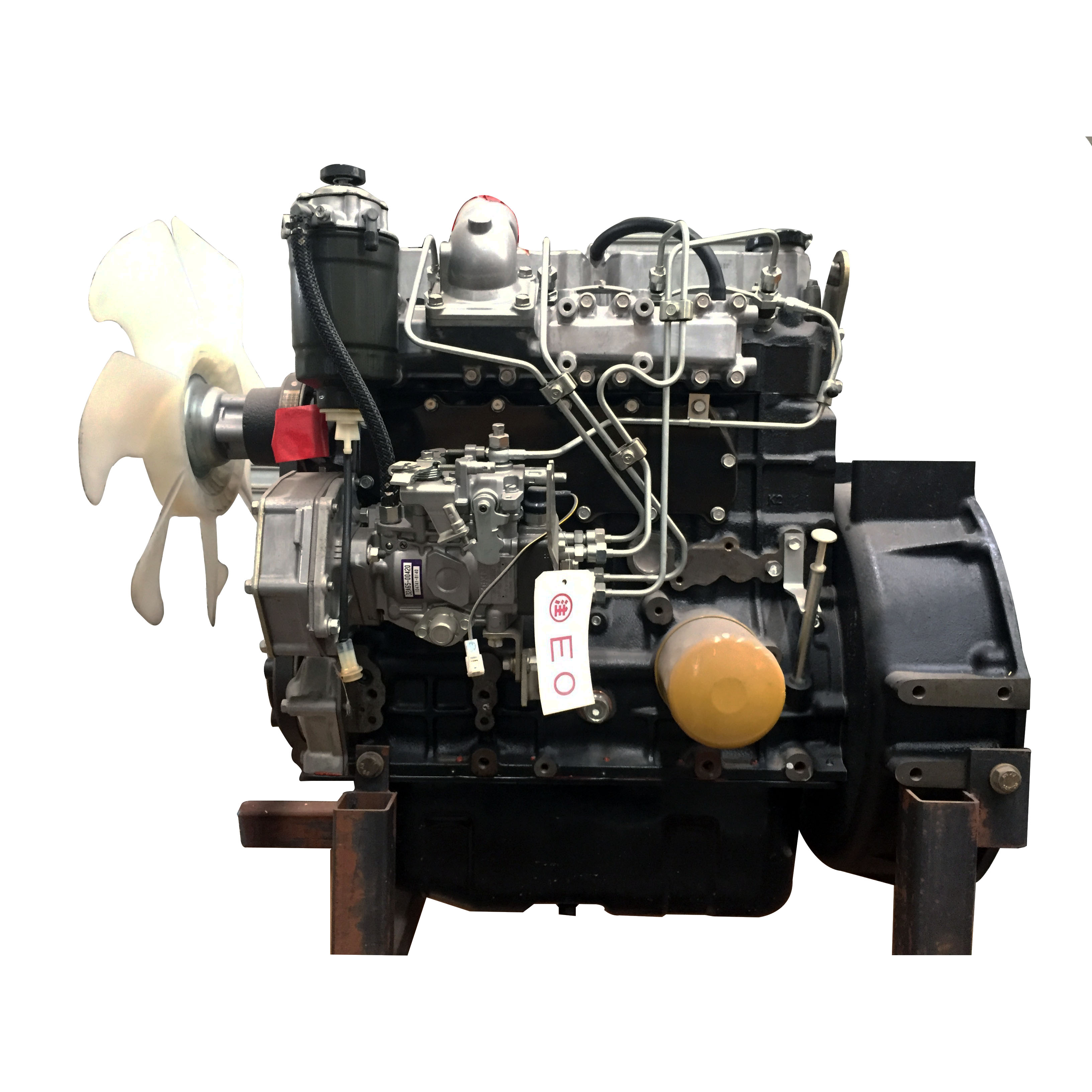

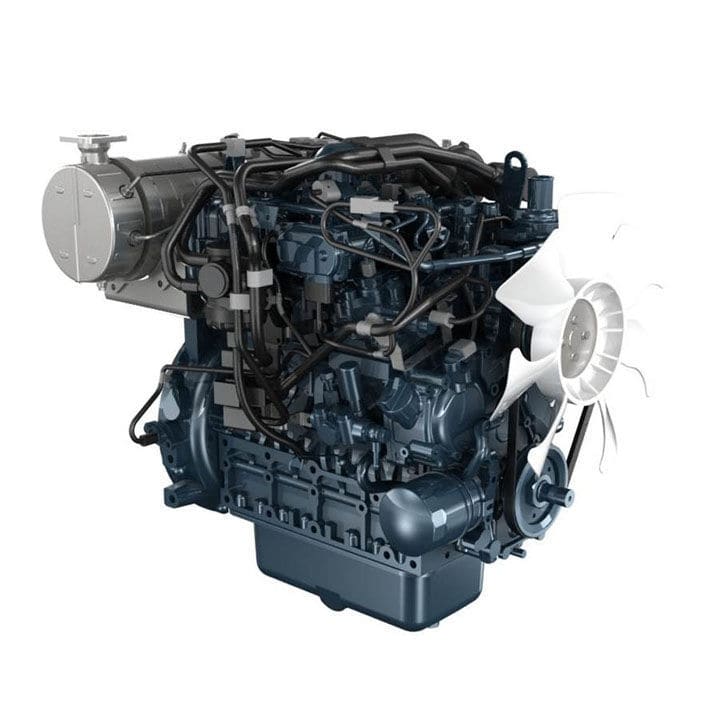

Nissan K25 LPG, Isuzu C240, Mitsubishi S4S, Kubota V2403, Yanmar — match your emission rules.

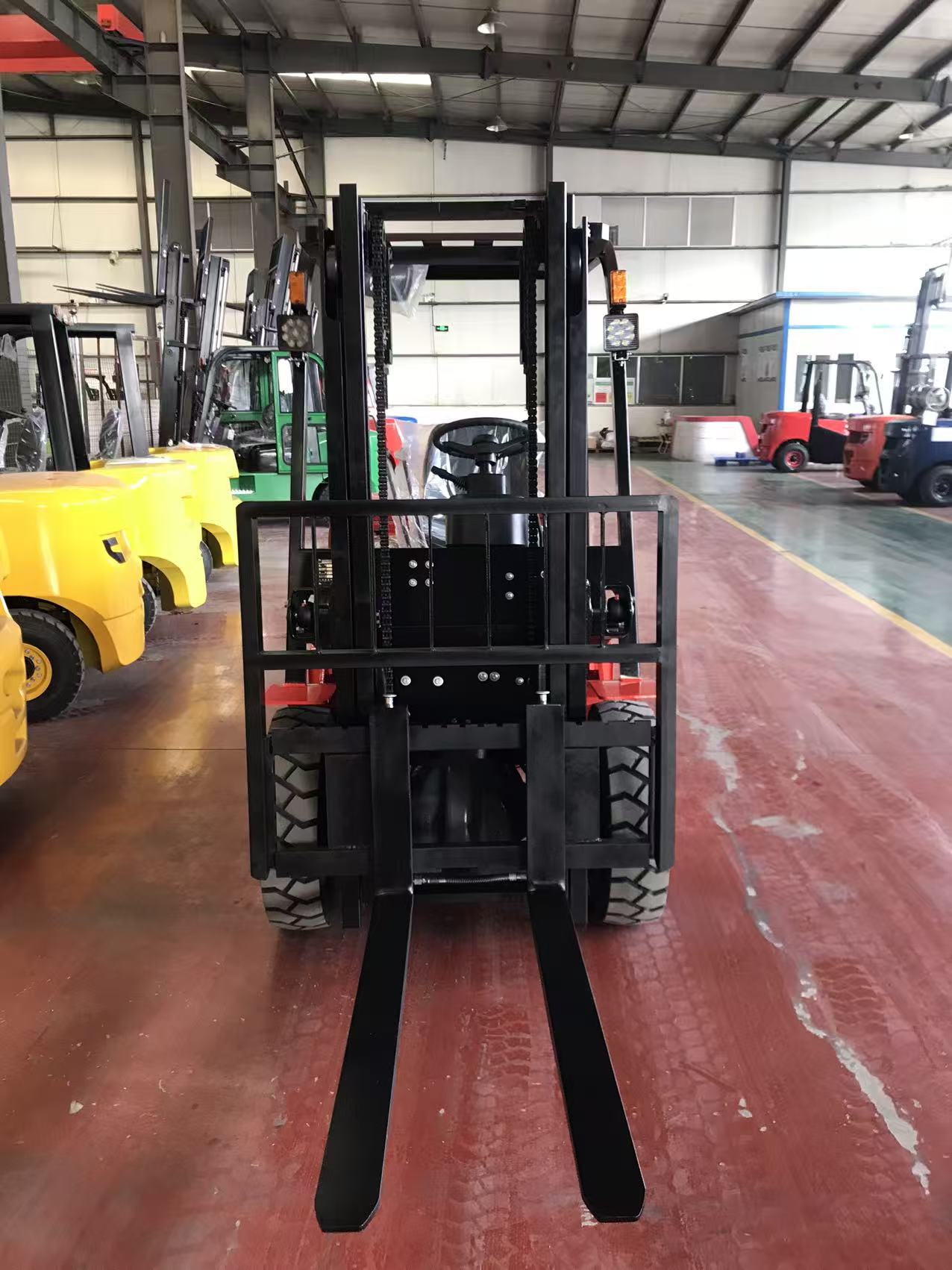

Mast & Height
Lift height from 3,000mm to 8,000mm. Triplex mast, free lift, side shifter ready.
Attachments
Side shifter, fork positioner, rotator, carton clamp, paper roll clamp — built to order.
Cab & Options
Open or closed cabin, heater, AC, suspension seat, LED lights, strobe, rear work lights.
Tire Options
Pneumatic, solid resilient, non-marking white, or polyurethane — 30+ sizes in stock.
Battery & Electric
Lead-acid or lithium-ion packs. Custom voltage and capacity for indoor / cold-storage use.
Documentation
User manual, parts catalog and CE declaration in your language. Label your brand on all docs.

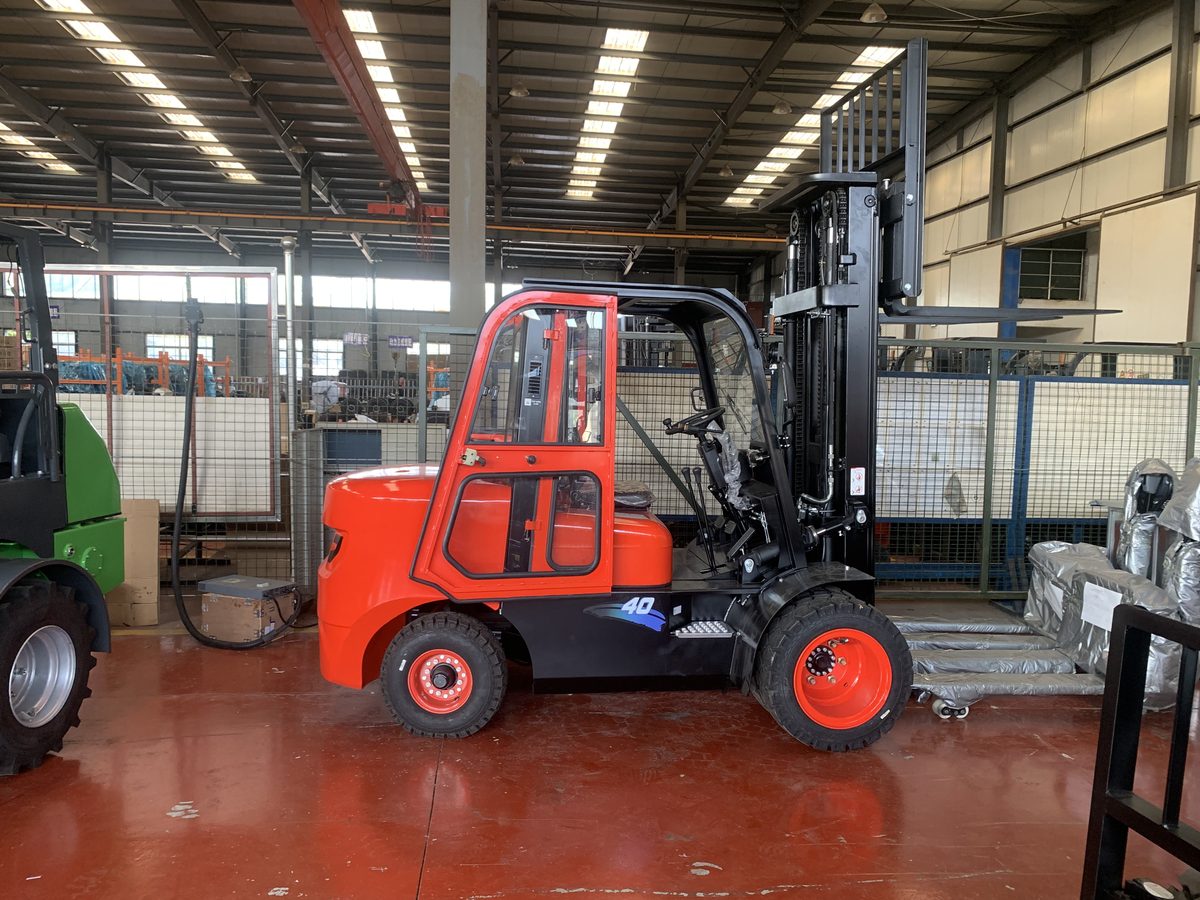

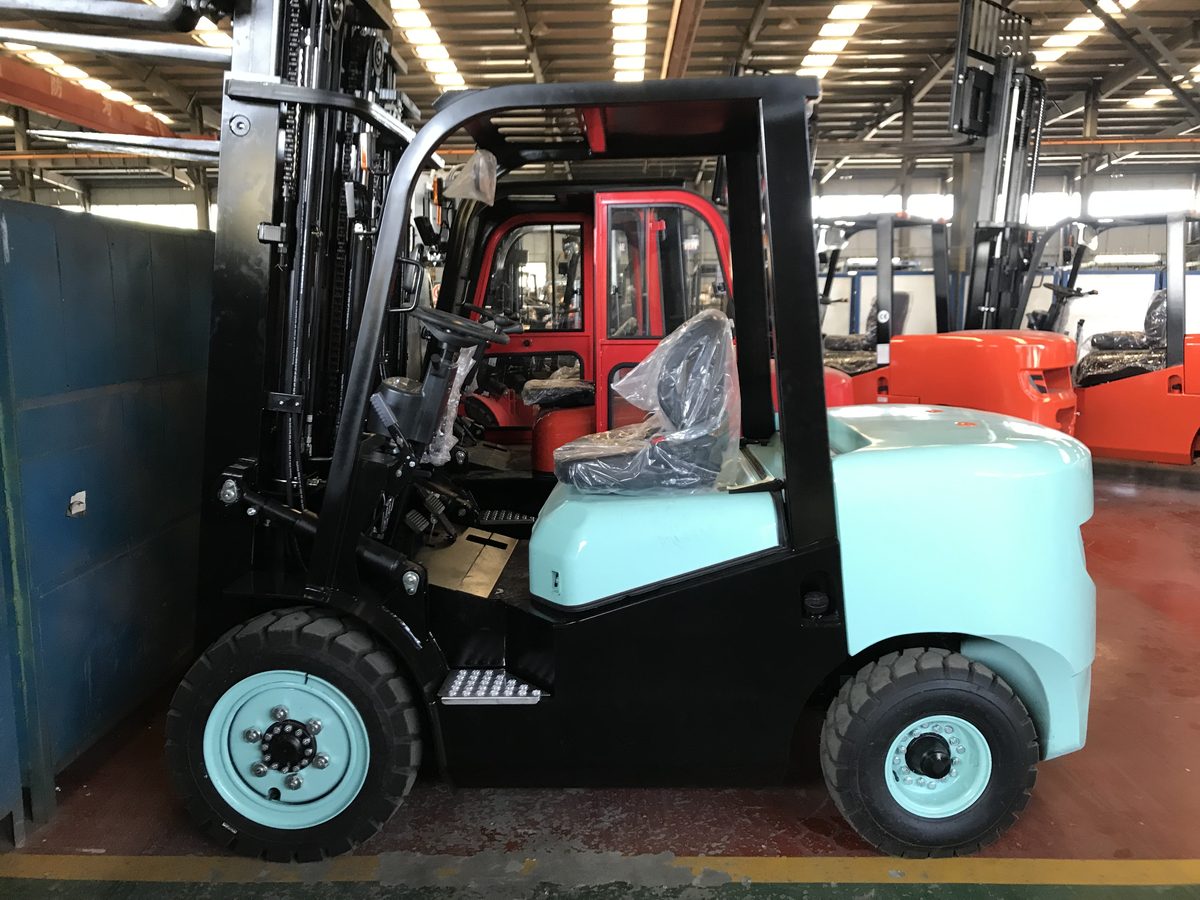

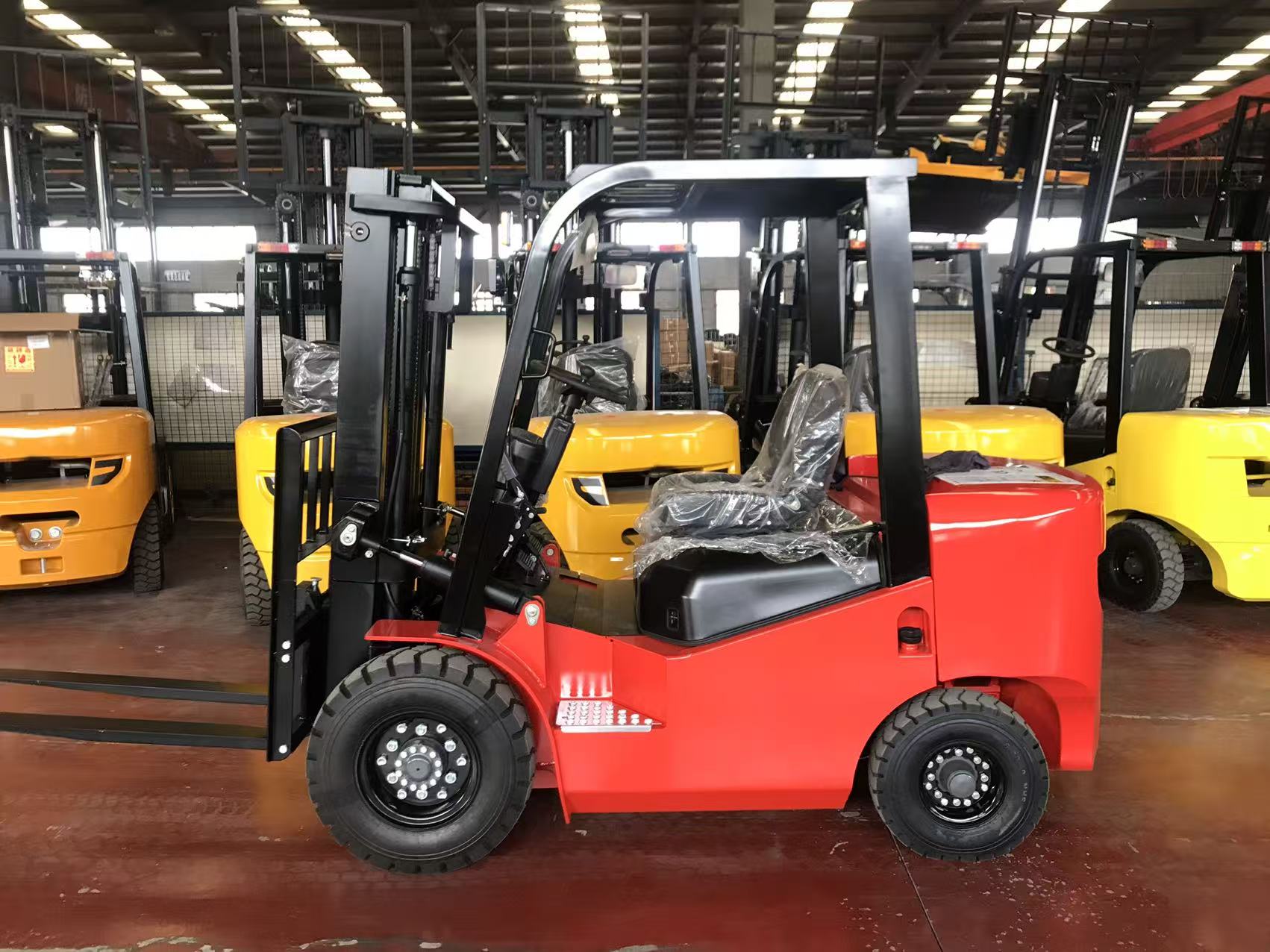

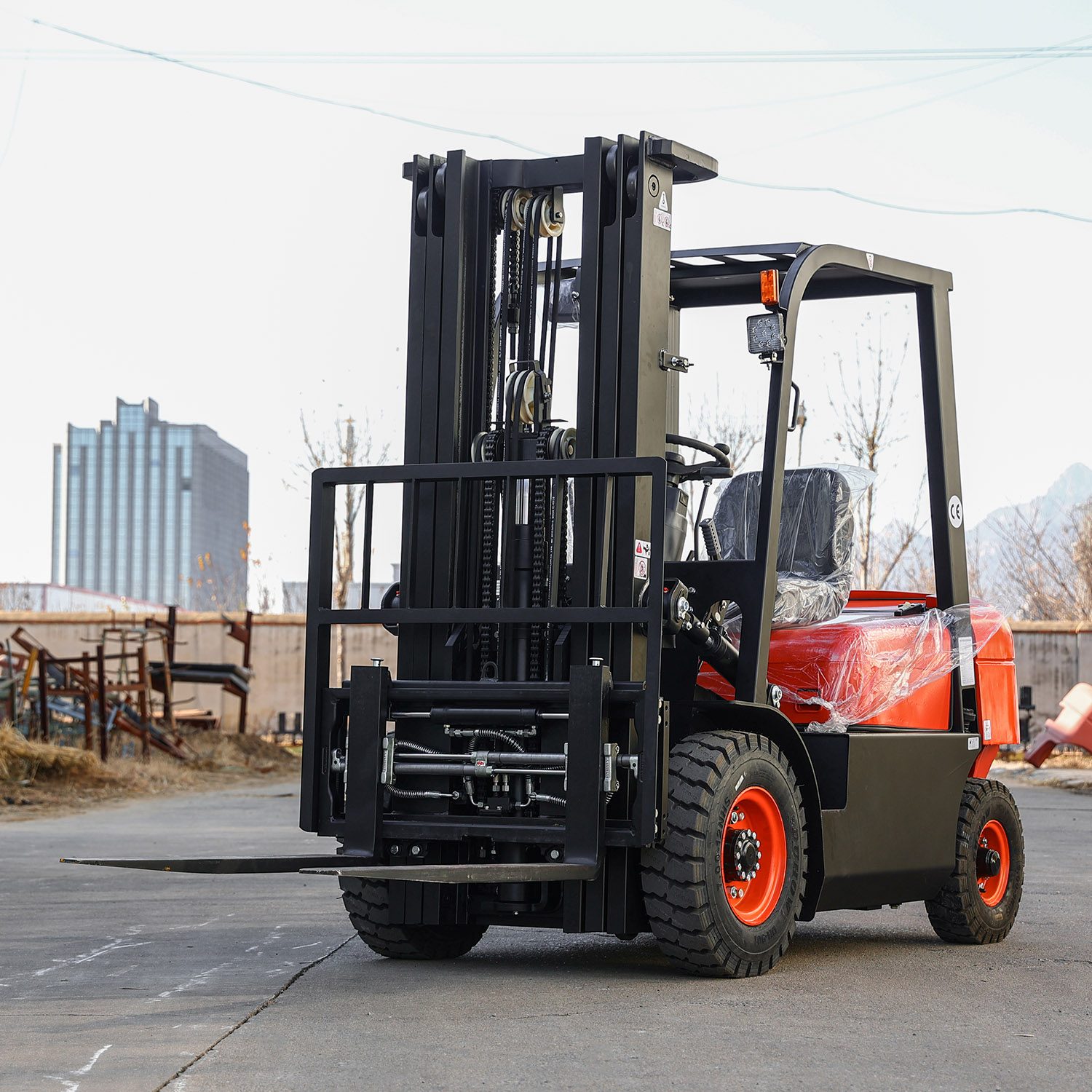

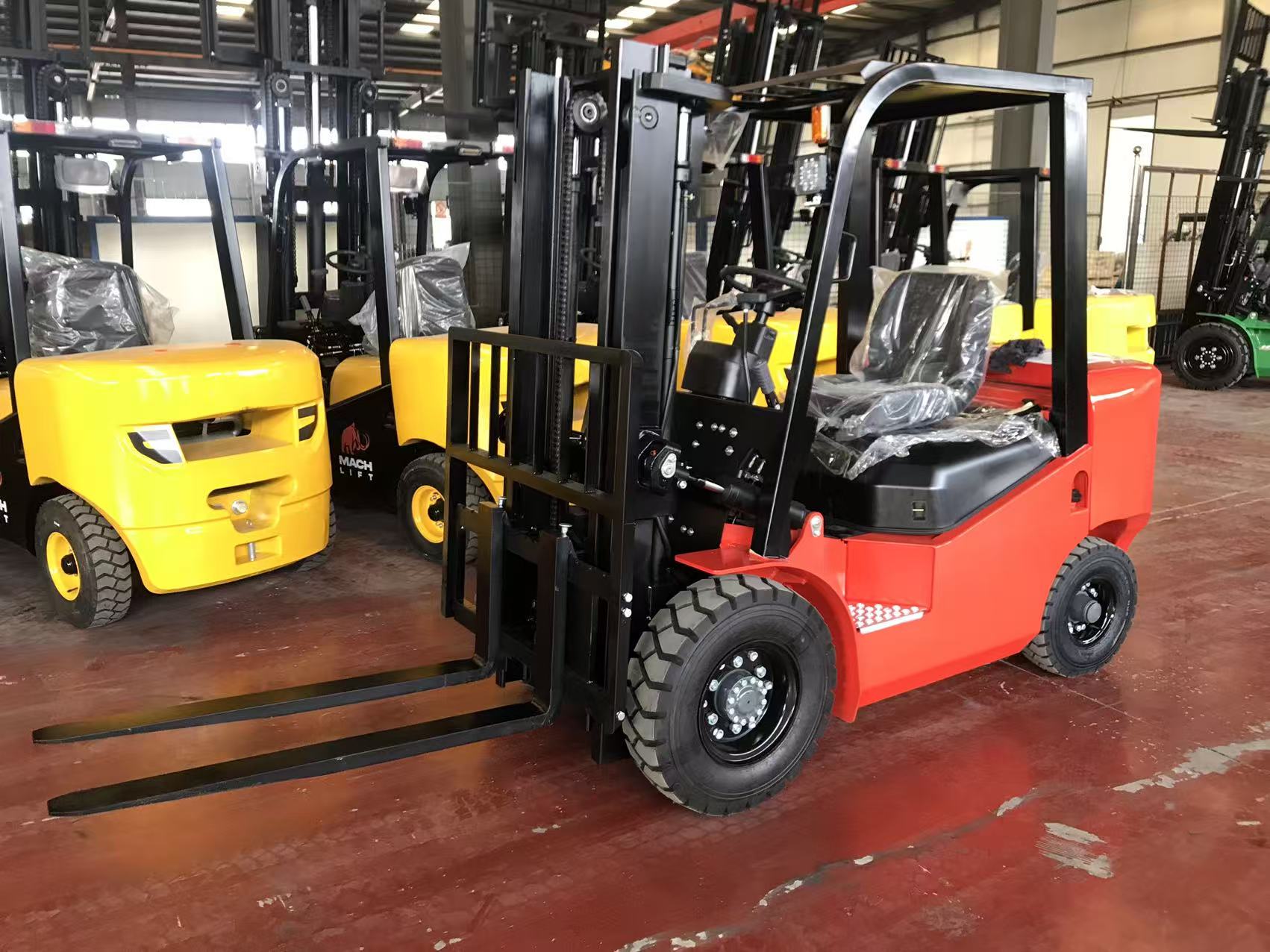

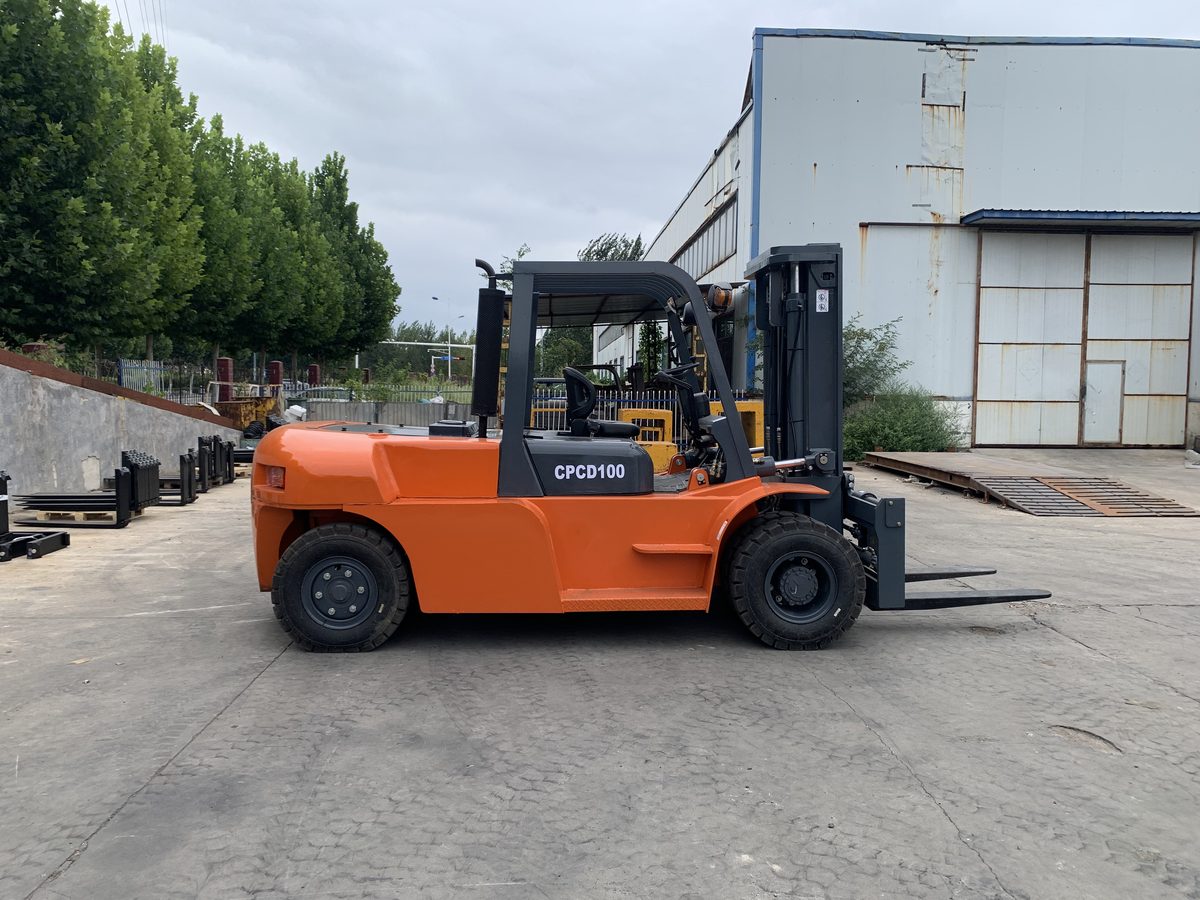

Diesel and LPG counterbalance forklifts from 1.5t to 10t, for ports, warehouses and outdoor yards. Robust drive systems, low fuel consumption and easy maintenance; optional side shift, clamps and other attachments.

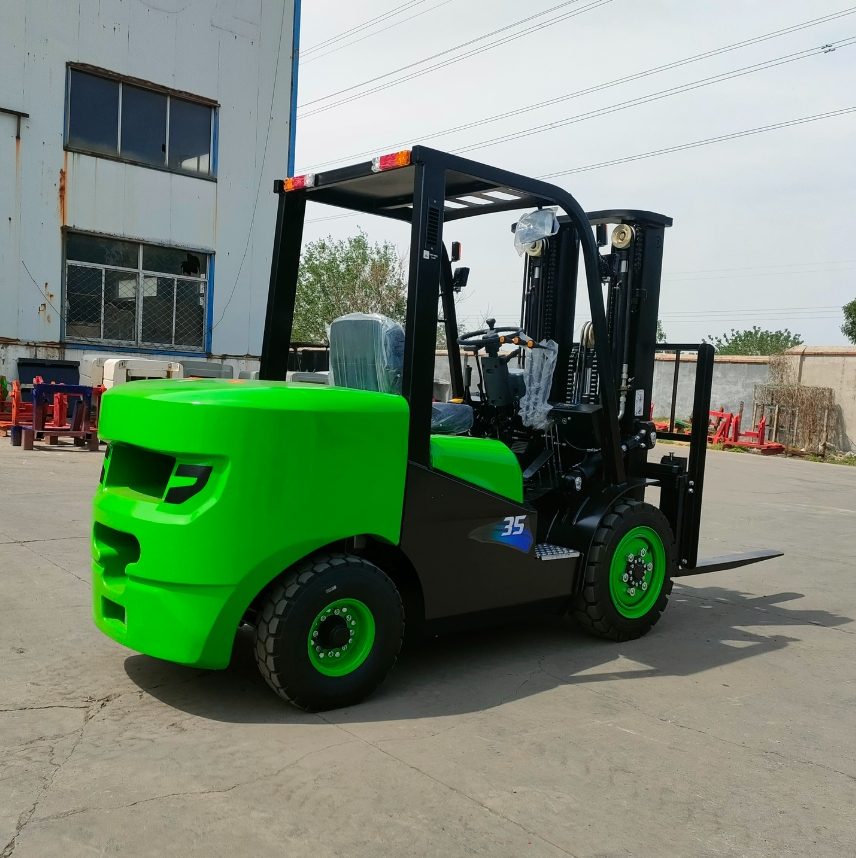

Lithium-Electric Forklifts
Zero-emission lithium forklifts from 1.5t to 3.5t, for indoor warehouses, food and pharma environments. Fast charging, no battery changing, lower running costs and clean operation.
Rough Terrain Forklifts
Heavy-duty rough terrain forklifts from 2t to 10t, built for mining sites, farms and construction projects. High ground clearance, 4WD option, durable mast and aggressive tires.
Available for dealer bulk order. Request the dealer price list and full specifications via the inquiry form. Product manuals available as PDF download.

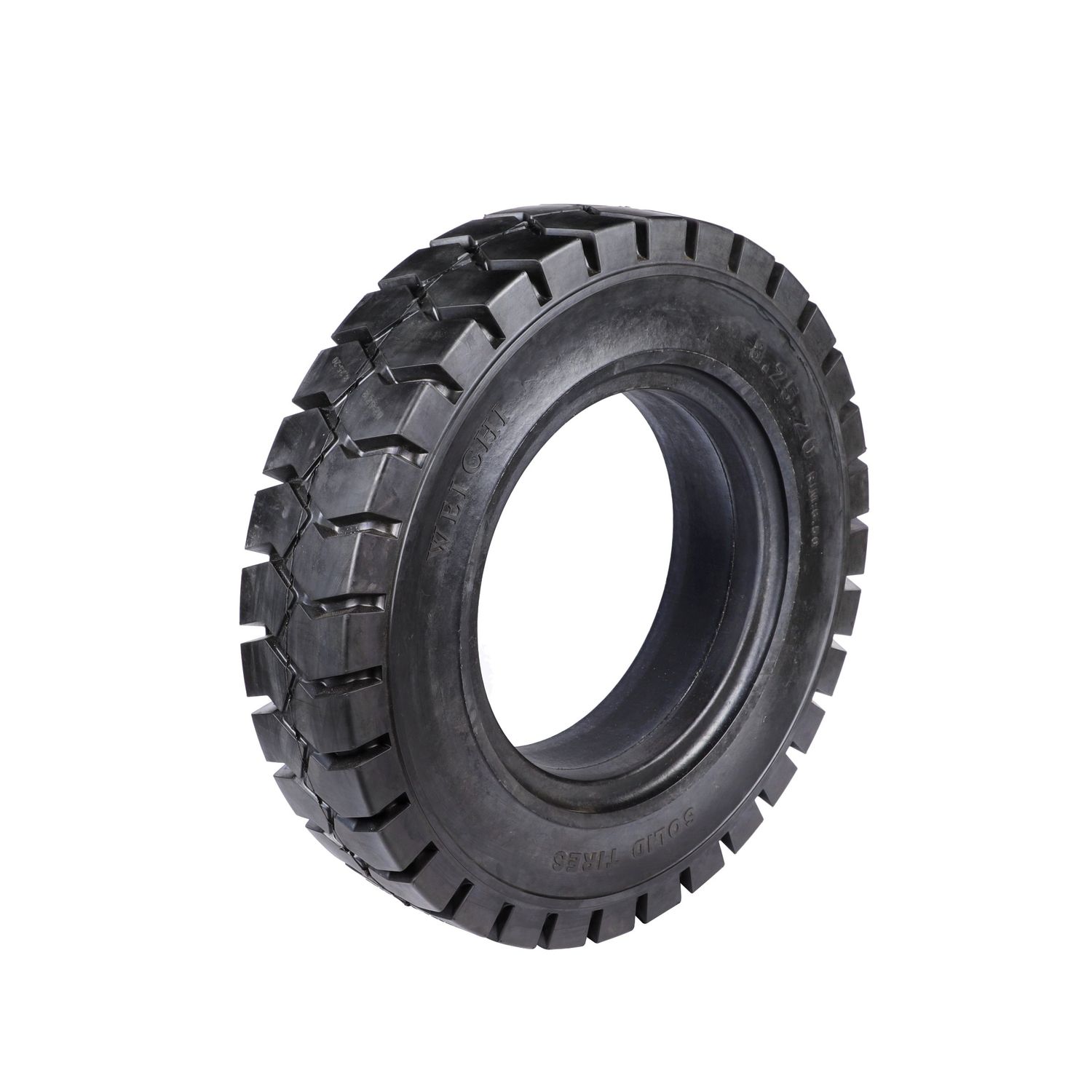

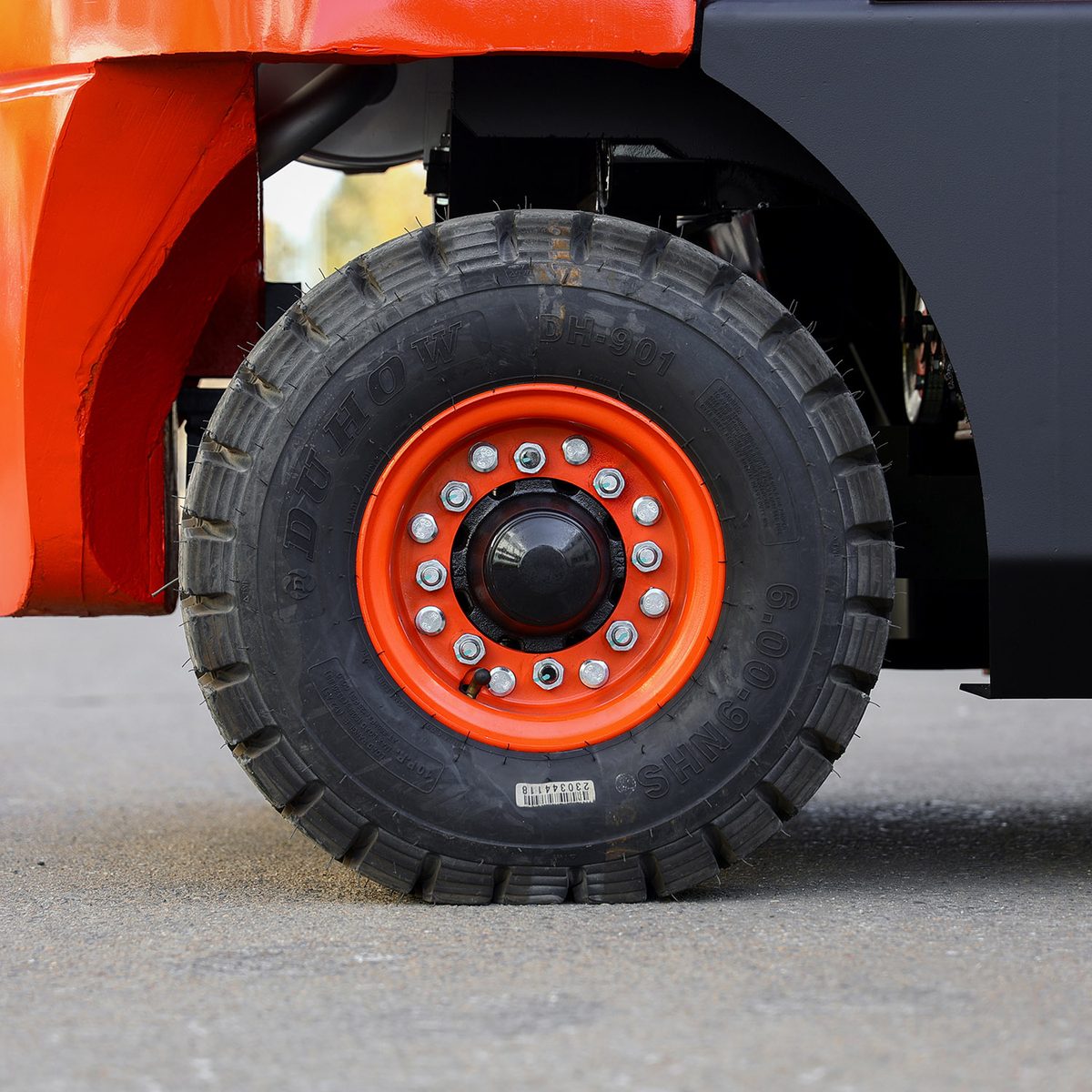

Our solid forklift tires cover 1.5t to 10t forklifts. Load capacity shown at 16 km/h for counterbalance drive wheel. Full 30-size chart available as PDF on request.
Tire Size
Rim
Outer Dia. (mm)
Width (mm)
Load at 16 km/h (kg)
Weight (kg)
Forklift Class
4.00-8
3.00D
423
121
995
11
1.5 – 2.0t

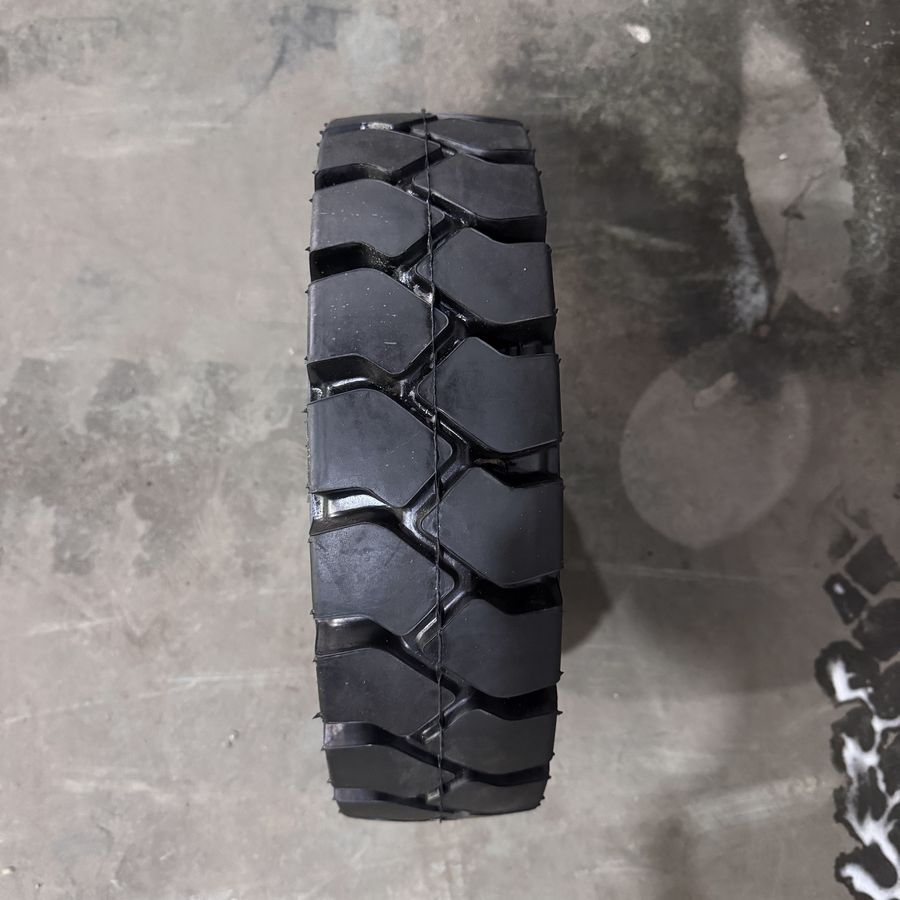

5.00-8
3.25D
465
128
1,145
14
2.0 – 2.5t

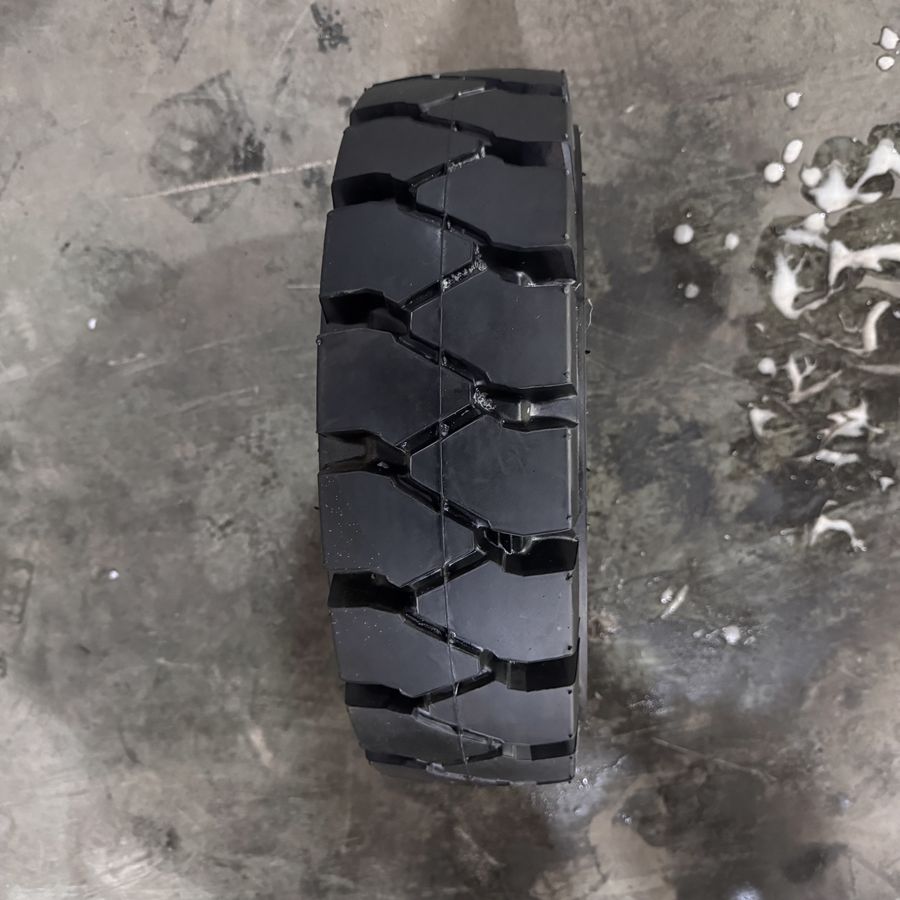

6.00-9
4.00E
545
160
1,805
28
2.5 – 3.0t

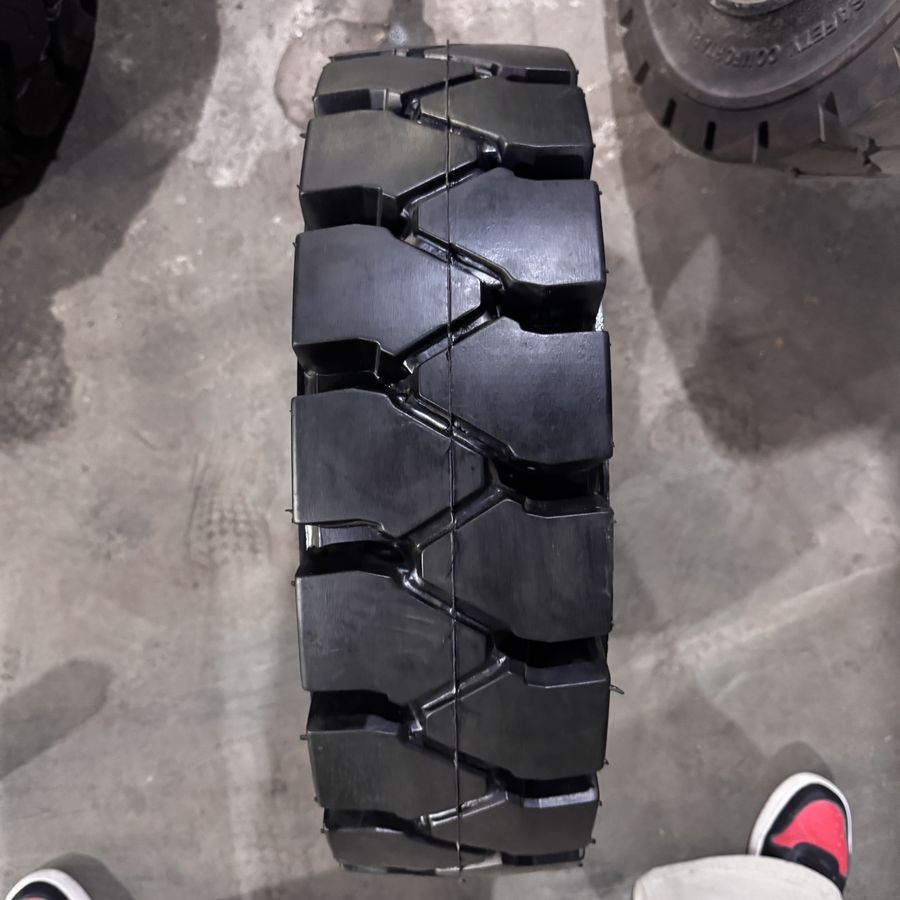

6.50-10
5.00F
597
178
2,485
35
3.0 – 3.5t (front)

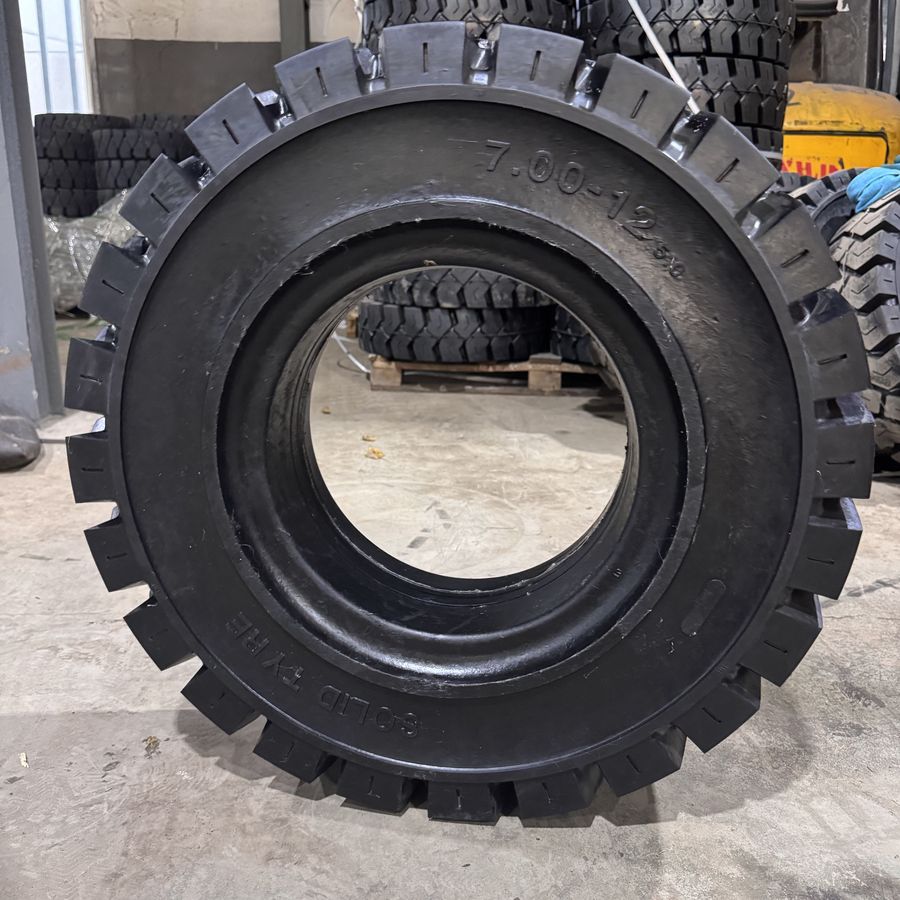

7.00-12
5.00F
683
192
2,835
47
3.0 – 3.5t (front)
8.15-15
6.50F
847
236
4,640
94
4.0 – 5.0t
8.25-15
6.50F
847
236
3,925
80
5.0t
8.25-20
6.50F
992
236
4,715
137
6.0t
9.00-20
7.00T
1,038
259
5,815
168
6.0 – 7.0t
10.00-20
7.50F
1,095
300
6,820
189
7.0 – 8.0t
11.00-20
8.00F
1,095
300
7,045
192
8.0 – 10.0t
12.00-20
8.00F
1,180
310
7,885
227
10.0t
Tire Compound Options
Standard (Black)
General-purpose solid tire for indoor and yard use. Best value.
Wear-Resistant (Red)
Extended tread life, high elasticity and tear resistance. For intensive use.
Non-Marking (Green)
No black streaks on clean floors. Ideal for food, pharma and retail warehouses.
Anti-Static (Yellow)
Conductive compound for explosive or sensitive environments.
Oil-Resistant (Orange)
Oil and flame retardant compound for metalworking and chemical areas.
Energy-Saving (Blue)
Lower rolling resistance for electric forklifts — longer battery run time.
Challenge: Mining site with rough terrain, long service hours and remote location. Solution: 4 units rough terrain forklifts + matching solid tires + spare parts in one 40HQ. Result: Delivered in 38 days; repeat order placed after 6 months.
Middle East Warehouse Dealer — Lithium Forklift Fleet
Challenge: Indoor warehouse operation, long shift hours, need for low-noise and low-maintenance machines. Solution: 6 units 3.5t lithium-electric forklifts + battery chargers + first-year spare parts package. Result: Shipped in 32 days; dealer added 2 more units in the second quarter.
Southeast Asia Rental Company — Solid Tire Bulk Order
Challenge: Rental fleet with high tire wear on mixed surfaces, need for consistent batch supply. Solution: 120 units pneumatic + solid tires across common sizes, packed in one 40HQ container. Result: First container sold out in 8 weeks; standing monthly order established.
Practical Knowledge for Buyers, Fleet Managers & Dealers
Selection guides, maintenance tips and market insights — written for people who buy, rent and sell forklifts and heavy equipment.
Forklifts · Mining · Africa
How to Choose the Right Rough Terrain Forklift for African Mining Sites
Mining sites in Zambia, Ghana, Nigeria and South Africa operate in conditions that break standard warehouse forklifts: dust, uneven ground, slopes, long service hours and remote locations with limited service. Choosing the right machine upfront saves money on downtime and parts.
1. Site Conditions First
Measure the worst slope (gradability), ground clearance needed, and whether the machine works indoors (warehouse at the mine gate) or outdoors (open stockyard). A 4WD rough terrain forklift is the right choice for uneven ground and 15%+ slopes; a standard counterbalance works for paved yards.
2. Load Capacity and Mast
Mine loads are often 2–5 tons. Choose rated capacity at the actual load center (usually 500mm) — not the marketing number. For stacking ore bags or containers, a 3-stage mast with 4,000–4,500mm lift height is standard. For container handling, ask for a free-lift mast so the carriage can lift below the container door.
3. Tires Make or Break the Machine

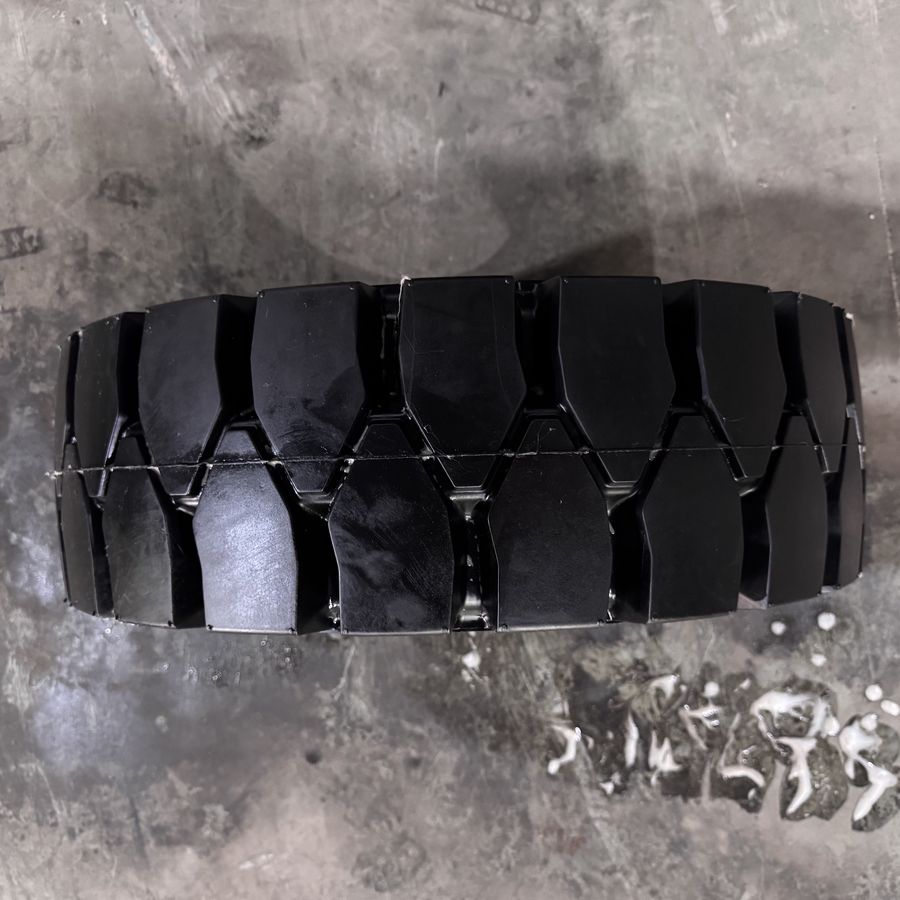

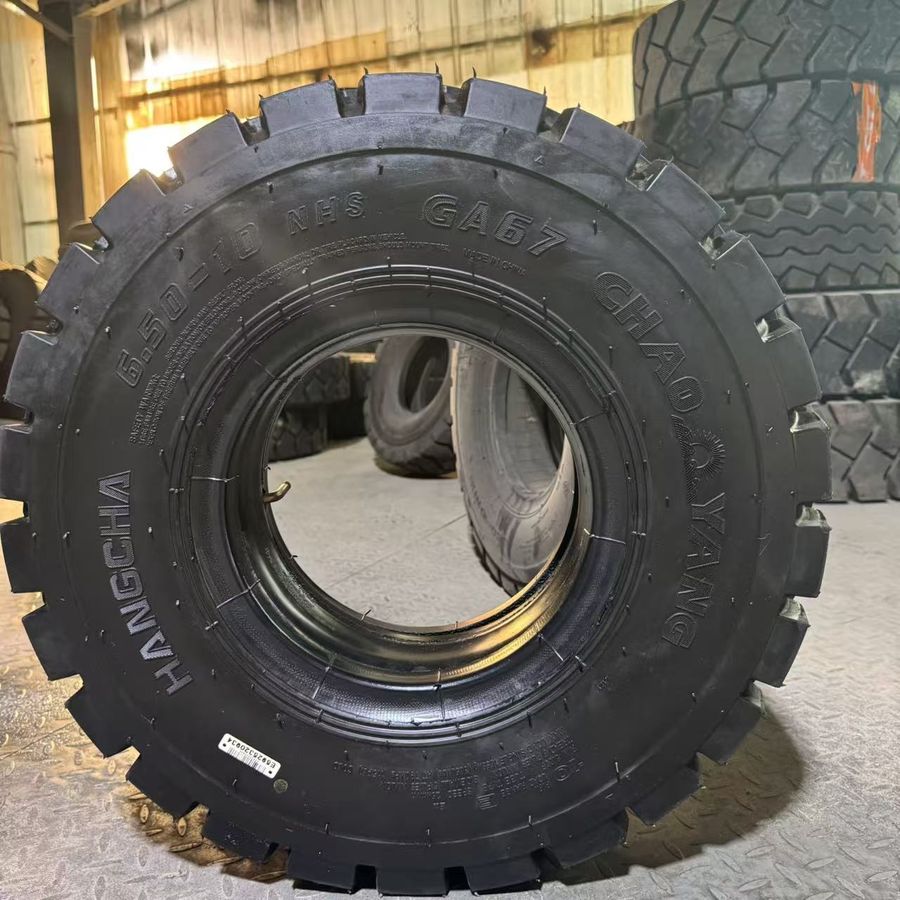

Pneumatic tires (28×9-15, 8.25-15) are standard for rough terrain. In dusty mining sites, expect tires to last 6–12 months. Solid tires last 2–3× longer but are less forgiving on rough ground. We recommend pneumatic for outdoor yards and solid for paved container areas.
4. Engine Choice for Hot Climates
African sites see 35–45°C ambient. Choose engines with adequate cooling: Isuzu C240 or Mitsubishi S4S are reliable for 2–3.5 ton machines. For 4–5 ton units, Isuzu 6BG1 or Mitsubishi S6S handle sustained load better. Avoid engines without a proper oil cooler in hot climates.
5. Parts Backup Is Non-Negotiable

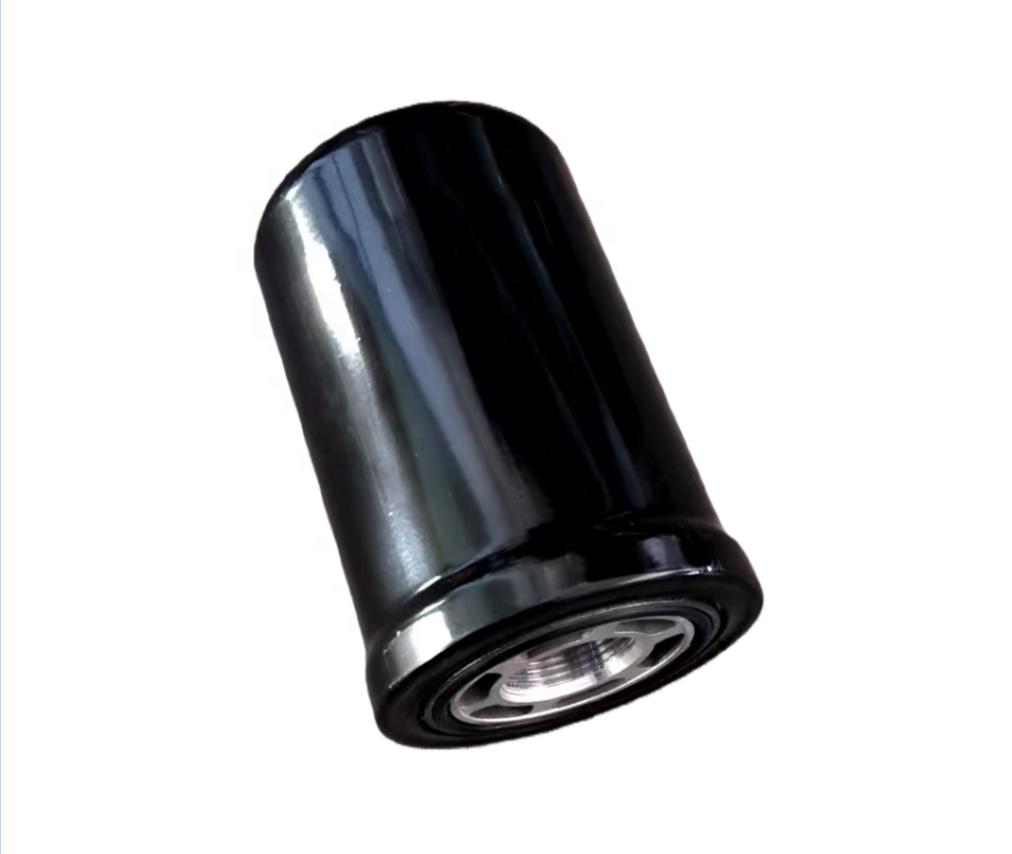

A mine that waits 4 weeks for a seal kit loses a fortune. Order a starter parts kit with the first container: oil filters, fuel filters, air filters, lift cylinder seal kit, brake pads and fan belt. We pack these alongside the machines so you have spares on day one.
Need a rough terrain forklift quote? Tell us your site conditions, load weight and working hours — we'll recommend the right model and parts package. Request a consultation →
Tires
Forklift Tire Maintenance Guide for Rental Companies
Tire pressure and wear check intervals → solid vs pneumatic → replacement standards → procurement tips.
Forklifts
Lithium Forklift Charging Tips & Safety Rules
Charging process → safety red lines → battery life management → lithium vs lead-acid.
Dealership
How to Start a Forklift Dealership: A Practical Guide
Container Loading Guide: How We Pack Forklifts for Export
Packing process → protection details → loading video → arrival and unpacking inspection.
Knowledge & Basics
Simple explanations of how forklift and lifting platform equipment works — for new buyers and fleet operators.
Knowledge

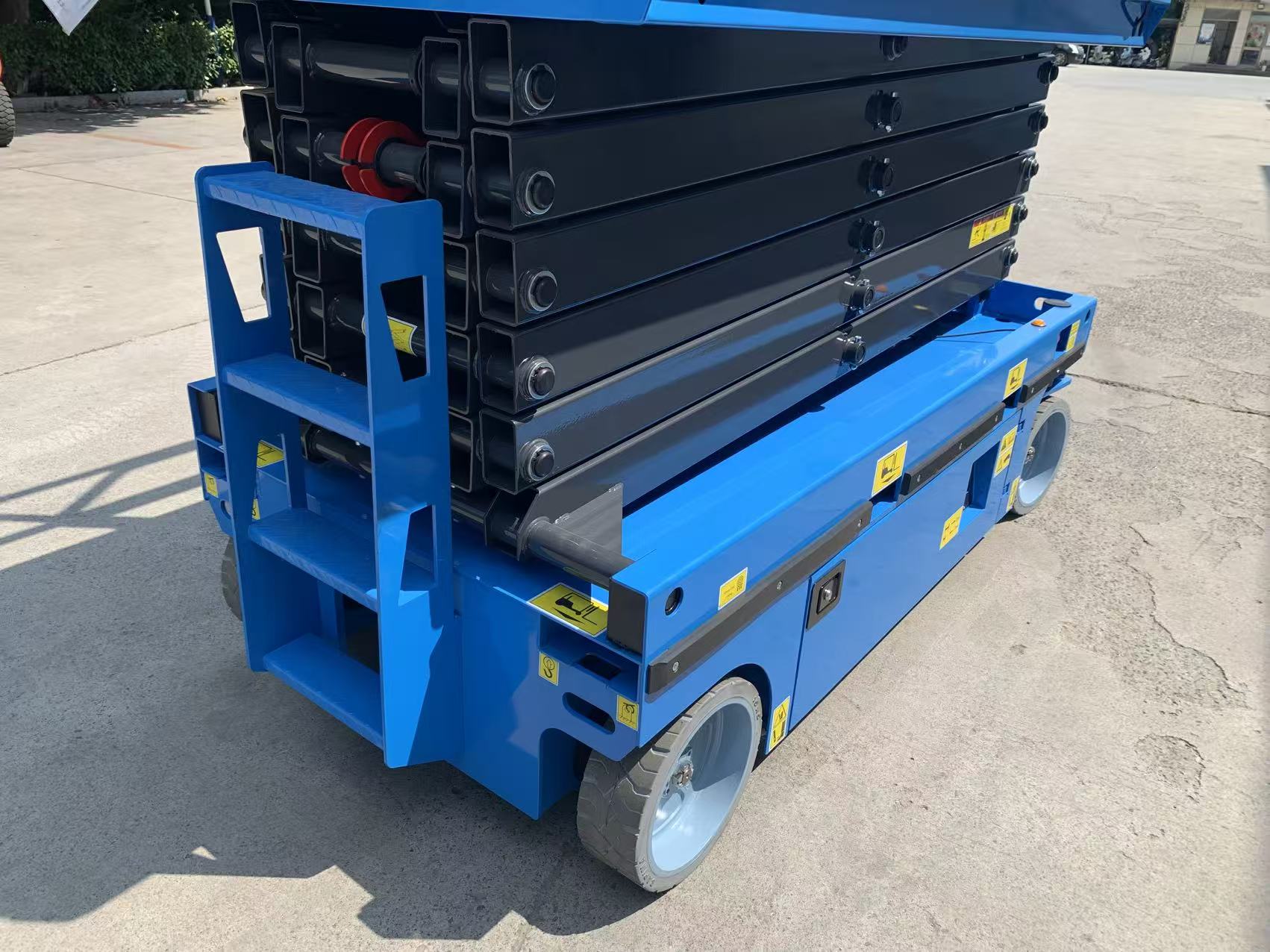

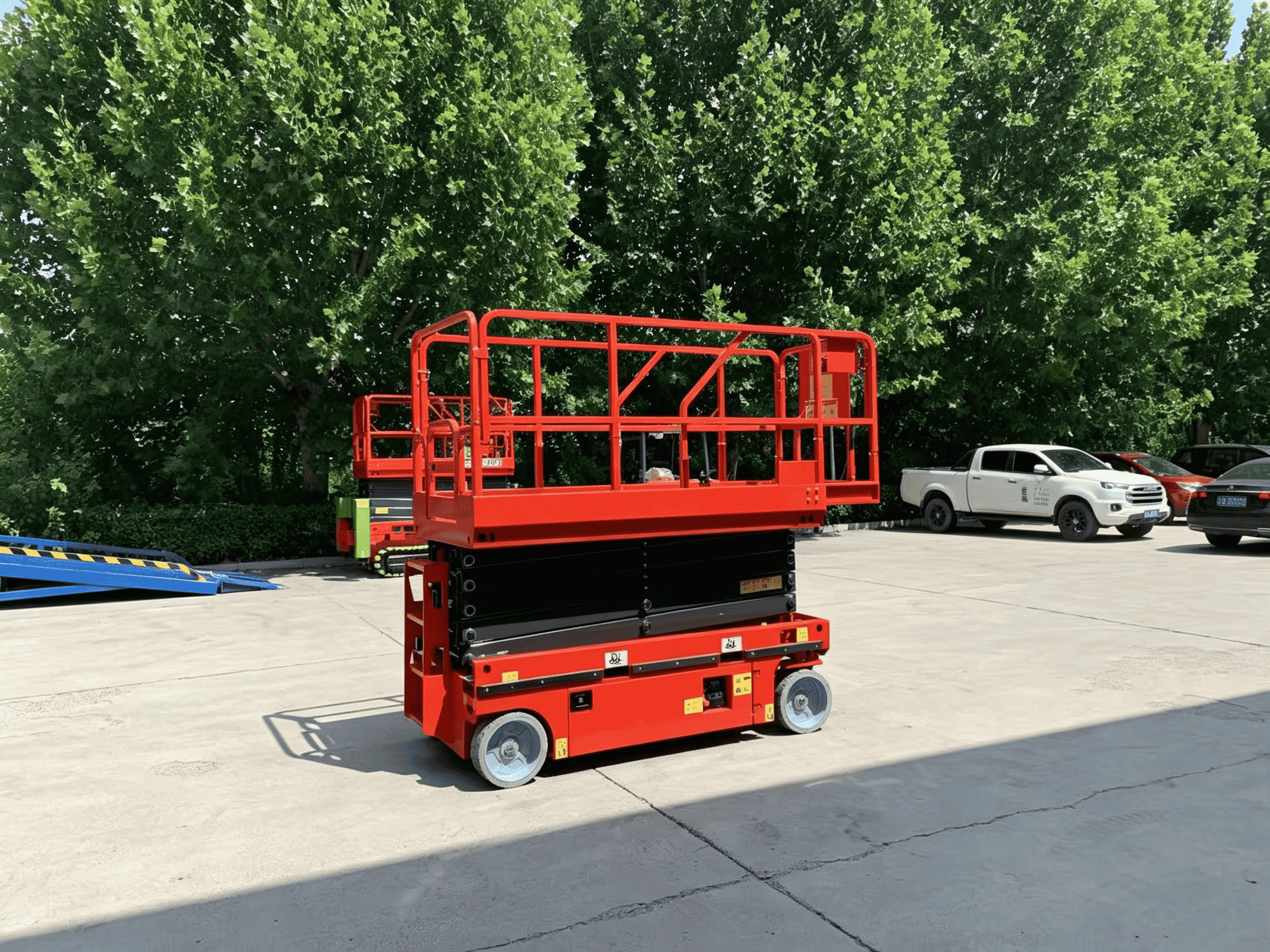

How a Scissor Lift Works: Hydraulics 101
A scissor lift uses hydraulic cylinders to extend criss-crossing arms. The pump pushes oil into the cylinder, which pushes the arms apart — raising the platform. Lowering releases pressure by gravity. Simple mechanism, but the safety checks matter.
Knowledge
Pneumatic vs Solid Forklift Tires: Which One?
Pneumatic tires absorb bumps and are best for outdoor, rough surfaces. Solid tires never go flat, last longer on smooth indoor floors, and resist punctures. Choose by surface: outdoor rough → pneumatic; indoor smooth / rental → solid.
Knowledge
Diesel vs Lithium Forklift: Total Cost Explained
Diesel wins on upfront cost and long shifts. Lithium wins on energy cost, maintenance and indoor air. If you run 2+ shifts indoors, lithium often pays back in 2–3 years. Outdoor all-day work → diesel.
Knowledge
Basic Forklift Maintenance: 5 Things to Check Daily
Fork and carriage condition → tire pressure/wear → hydraulic oil level → horn and lights → overhead guard damage. A 5-minute walkaround prevents most breakdowns and extends machine life.
About LIFTRAY — Linyi Liftray Heavy Industry
Heavy machinery manufacturing & export specialist — forklifts, scissor lifts and material handling equipment built for dealers who demand consistency at scale.
Built in Shandong, Trusted Worldwide
Liftray is a heavy machinery manufacturer based in Linyi, Shandong Province — the heart of China's forklift and construction equipment industrial cluster. From chassis welding and axle sub-assembly to paint, final assembly and export packing, we control the full process under one roof. This means shorter lead times, tighter quality control and direct factory pricing for our dealer partners.

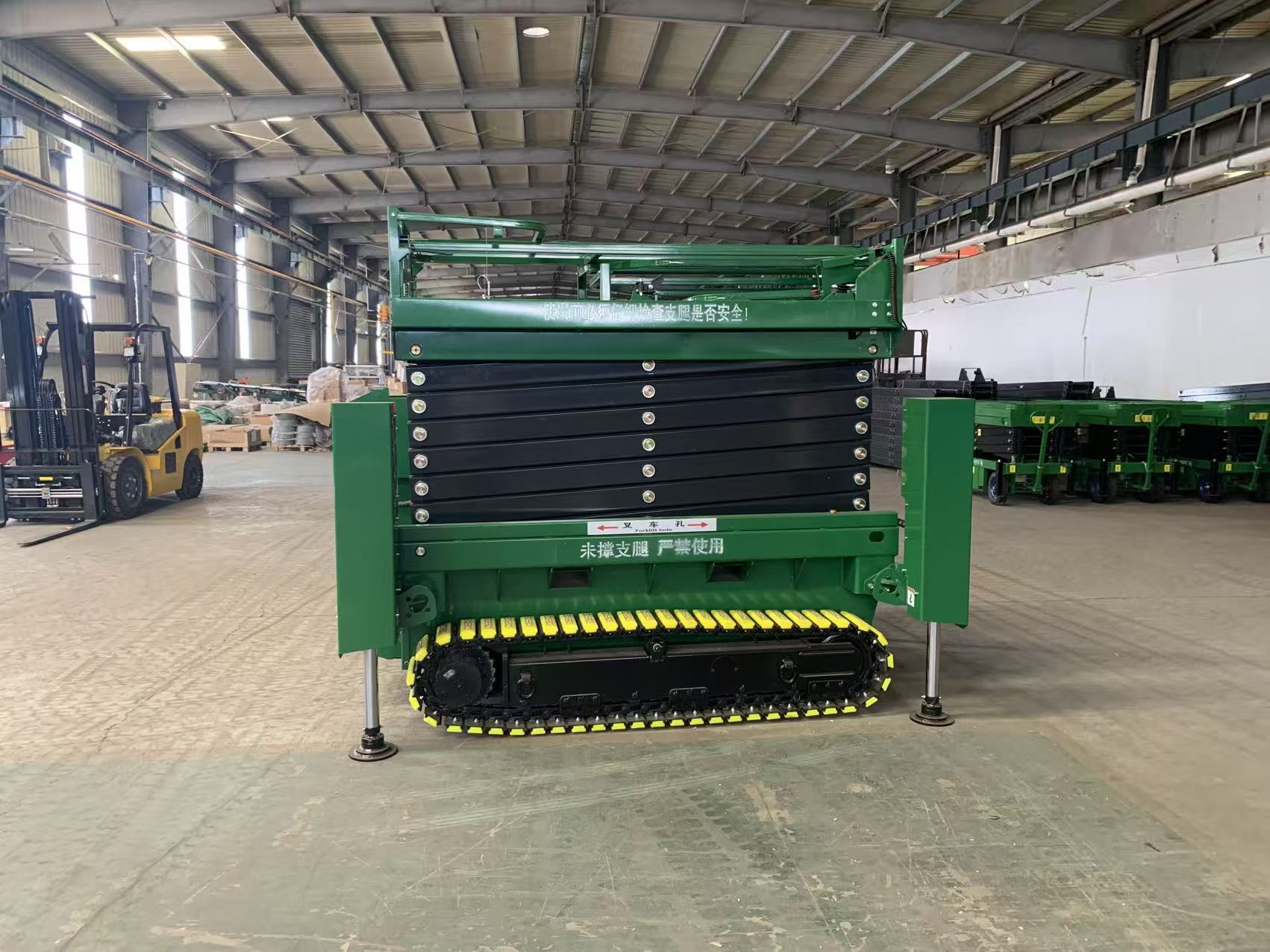

Our production range covers 2–10 ton diesel counterbalance forklifts, 3–3.5 ton lithium-electric forklifts, electric and tracked scissor lifts, plus a full line of forklift tires and spare parts. We support multiple engine platforms — Xinchai, Quanchai, Isuzu, Mitsubishi, Yanmar, Kubota and Nissan K25 — so you can match the right machine to your local emission rules and customer expectations.
20+
Years of Manufacturing
60+
Export Countries
10+
Engine Platforms
CE · ISO
Certified Quality System
What Makes Our Factory Different
Full In-House Process
Chassis welding, hydraulic system assembly, drive axle installation, painting and final testing — not a trading company reselling third-party machines.
Flexible Configuration
Mast heights 3–6 m, side shifters, closed cabins, pneumatic or solid tires, 10 engine options. We build to your market, not a fixed catalog.
Rigid Pre-Ship Inspection
Every truck goes through load test, hydraulic pressure test, brake test and function check before container loading. Photo and video records provided.
Dealer-Focused Supply
We don't sell retail online. Our job is to support distributors with volume pricing, spare parts kits, marketing materials and regional protection.
Factory introduction — production line, quality testing and export packing.
Production & Quality
Every forklift goes through assembly, load testing and pre-delivery inspection before container loading. We maintain consistency across batches so your customers receive the same machine order after order.
Inside Our Factory
From chassis welding and axle assembly to finished-line inspection — a single facility that controls quality at every step.

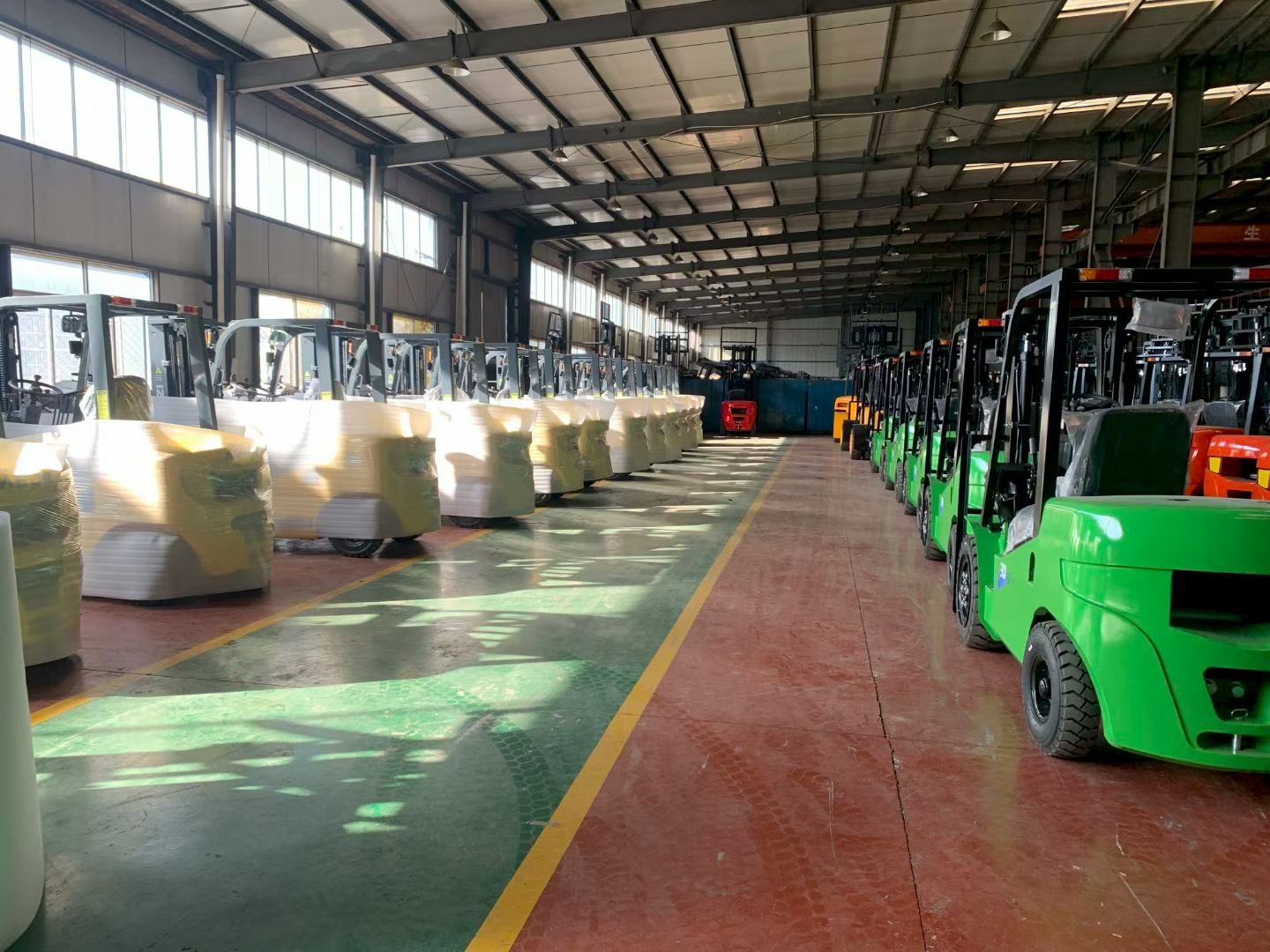

Finished-unit warehouse — order rows staged for container loading

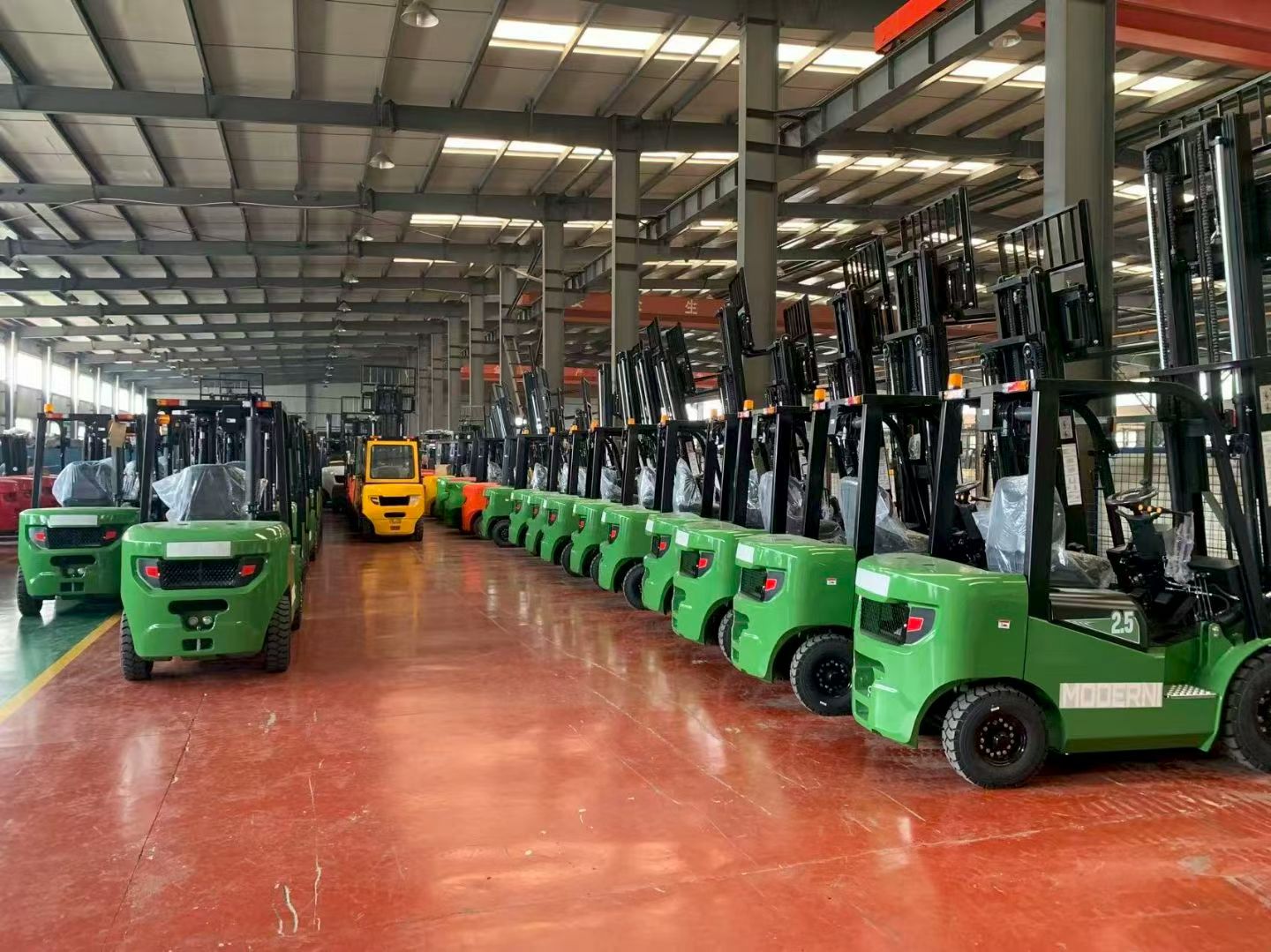

Assembly line — lithium and diesel units in parallel production

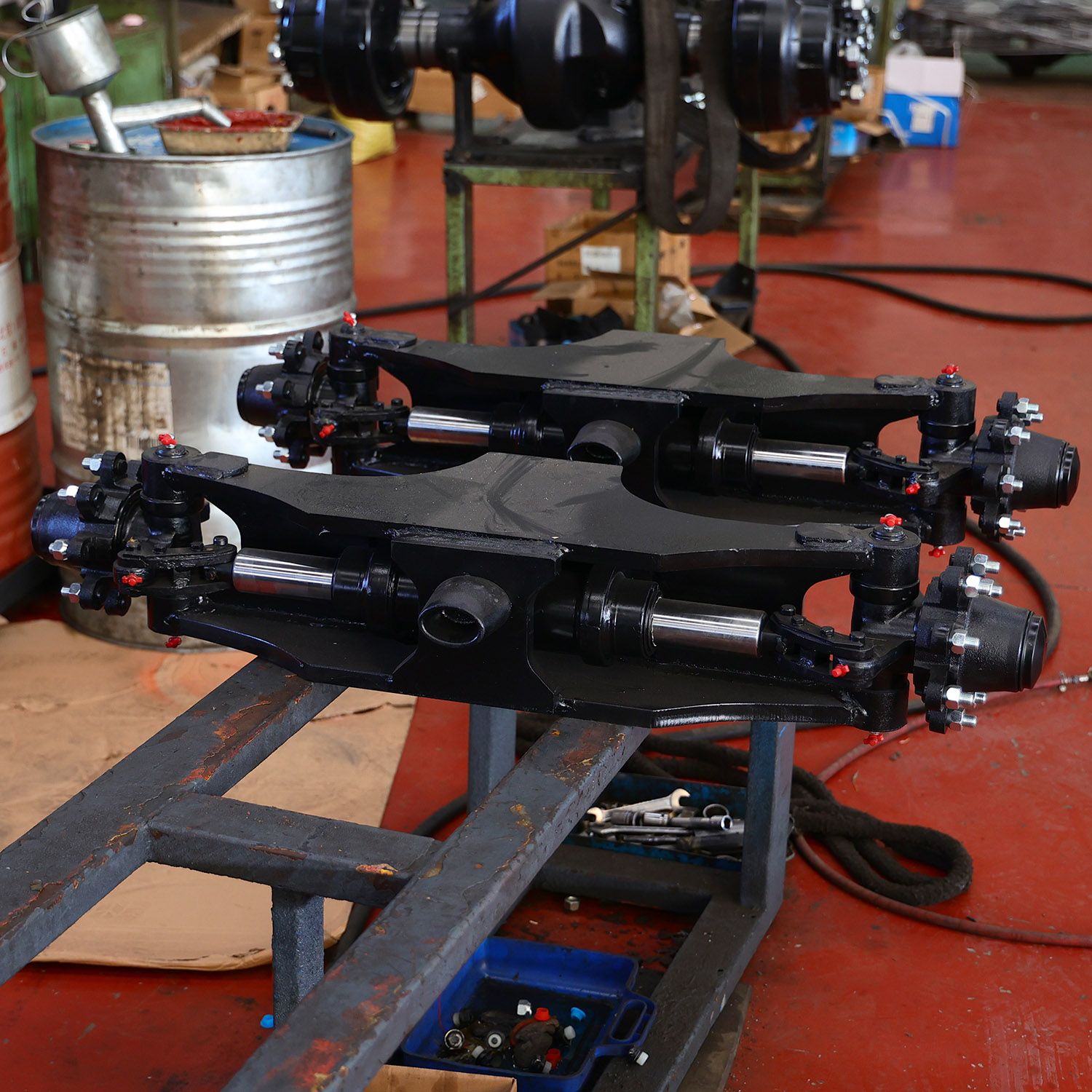

Drive axle & transaxle sub-assembly — precision fit before installation

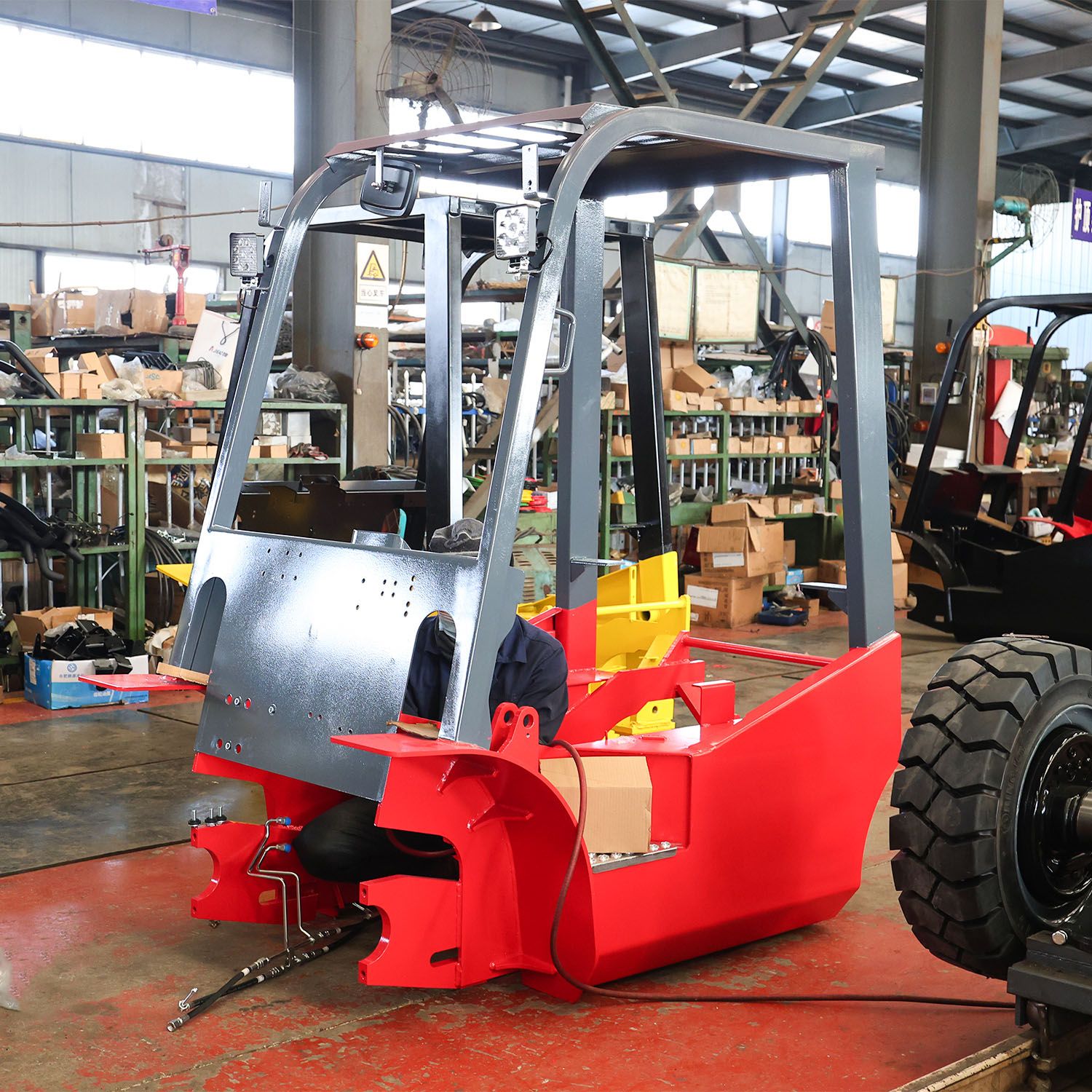

Chassis & overhead guard welding — structural foundation of every truck

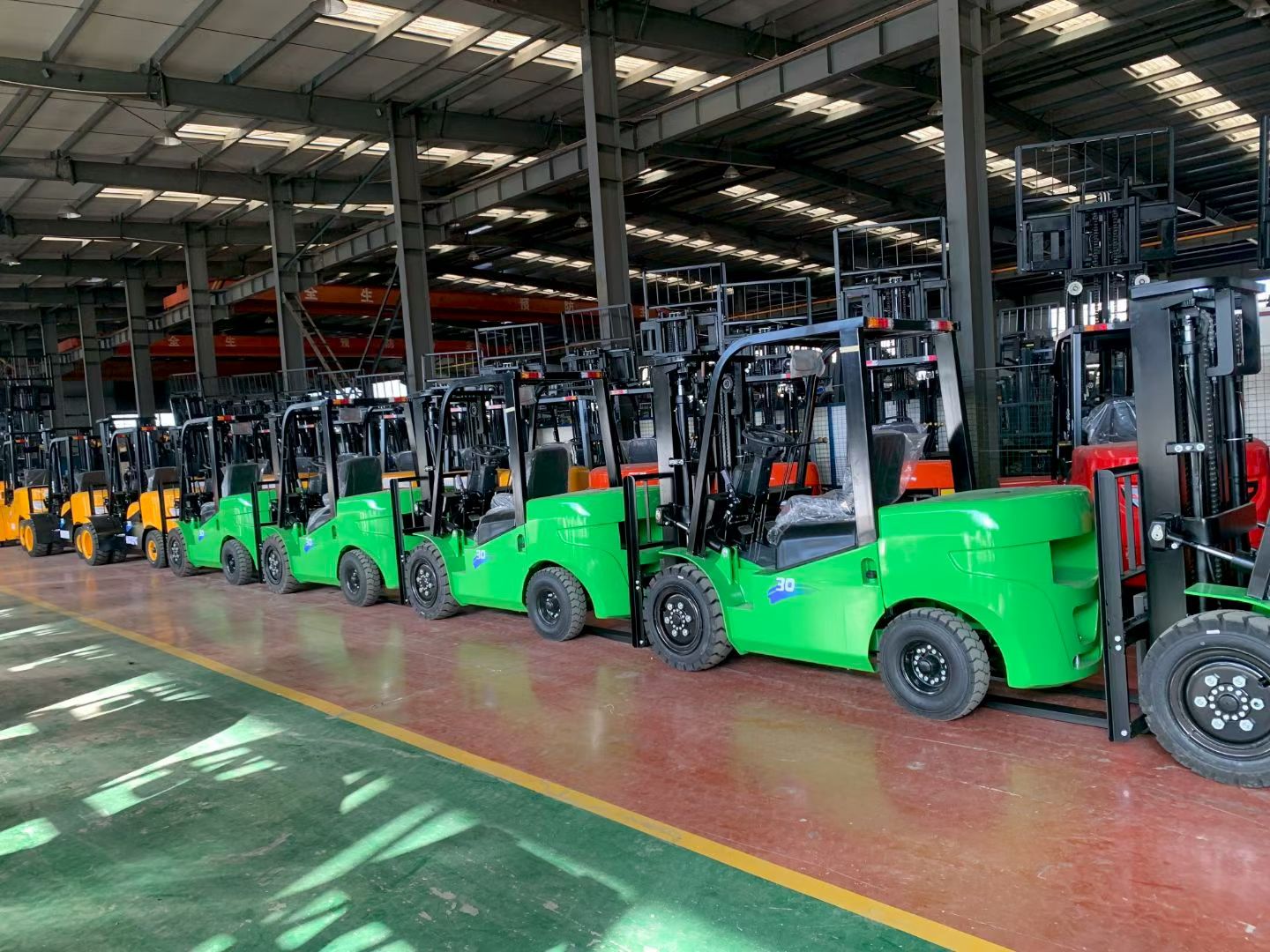

Final inspection row — 2–3 ton units staged before packing
Our Export Team
Multilingual sales and technical support, complete export documentation and after-sales follow-up — so your first container is as smooth as your tenth.
Why Dealers Trust LIFTRAY
Stable factory-direct supply.
One-stop portfolio: machines, tires and parts.
Export experience across emerging markets.
Long-term partnership mindset — your growth is our growth.
Certifications
Our products are manufactured under certified quality systems and meet EU Machinery Directive requirements for global distribution.
CE — Machinery Directive 2006/42/EC
ISO 9001:2015 Quality Management
